Trunk Opener Sensor STF102K
Trunk Opener Sensor STF102K
STF102K is a microwave sensor that is used to turn the car trunk ON or OFF. The action of the human foot is detected by a microwave sensing module located at the rear of the vehicle

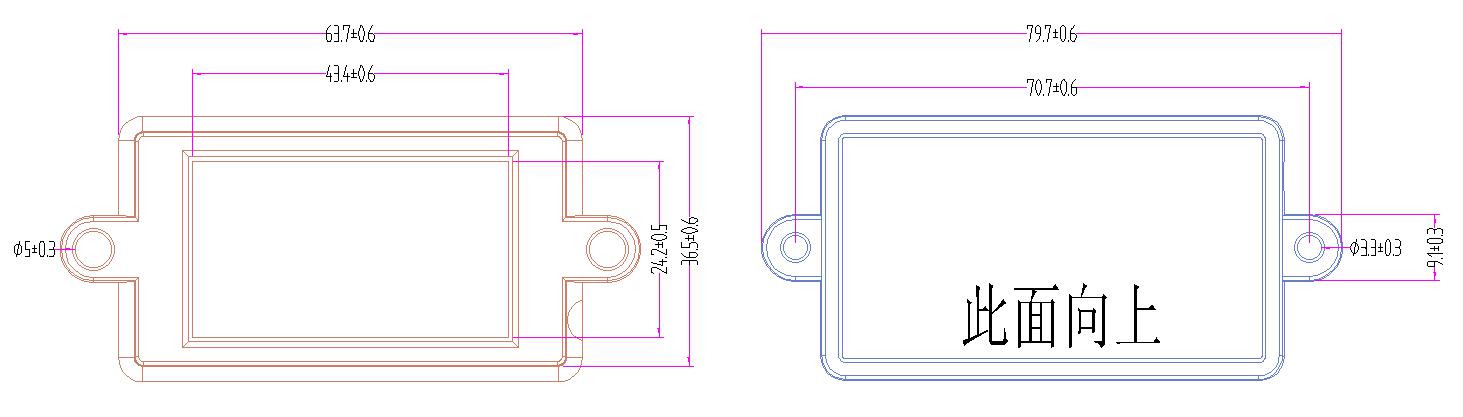

Product Dimension
Unit：mm
Introduction
STF102K is a microwave sensor that is used to turn the car trunk ON or OFF. The action of the human foot is detected by a microwave sensing module located at the rear of the vehicle, and the corresponding level signal is output according to the detection result, thereby realizing the function of controlling the opening or closing of the trunk of the automobile.
Electric Characteristic
Supply Voltage | DC 9 ~ 12V | Working Mode | Duty cycle |
Working Current | ~5 mA | Startup Time | About 2 s |
Transmit Frequency | 24.125±0.25 GHz | Temperature Range | -20 ~ +60 ℃ |
Detected Distance | ~30 cm | Waterproof | IP68 |

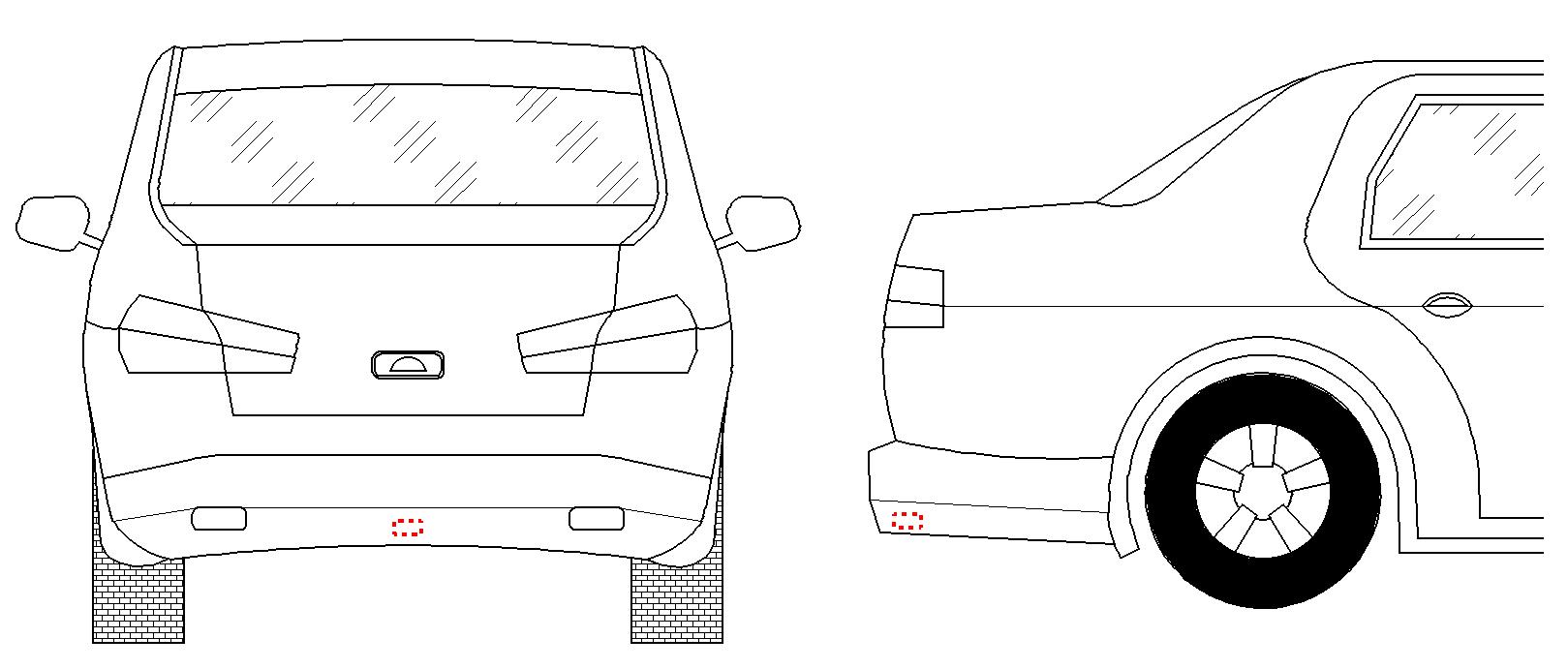

Setup Indication
The red dashed box show Sensor location.
