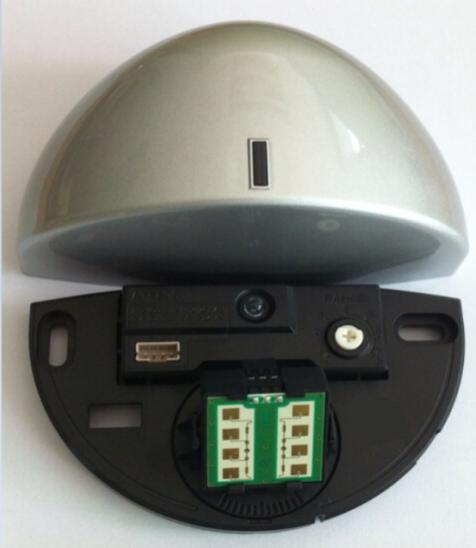

Automatic Door Sensor STF830
Automatic Door Sensor STF830
STF830 is a 24G microwave sensor with adjustable antenna angle and sensing distance. It is mainly used as an automatic door sensor. Install it in a fixed position.
1. Product Dimension
a.outline dimension：120mm(L)×80mm(W)×50mm（H）
b.outline dimension：120mm(L)×80mm(W)×62mm（H）
2. Introduction
STF830 is a 24G microwave sensor with adjustable antenna angle and sensing distance. It is mainly used as an automatic door sensor. Install it in a fixed position. When someone enters the detection area of the sensor, the indicator light on the sensor lights up, and the corresponding signal is output to control the automatic door.
3. Electric Characteristic
Supply Voltage | AC&DC 12V-24V | Height of Setup | < 4m |
Power consumption | < 1W(VA) | Detected Range (Height in 2.2m) | 4m(W)*2(H) |
Transmit Frequency | 24.125 GHz | FOV | 00 - 900 |
Power density | < 5m W/cm2 | Temperature range | -20°C - +55°C |
Continuous power time | 1.5s | IP protection level | IP54 |
