Smart Toilet Microwave Sensor STF108D
Smart Toilet Microwave Sensor STF108D
STF108DIt is a microwave sensor used for automatic control of toilets. The state of the human body around the toilet is detected by the microwave sensing module

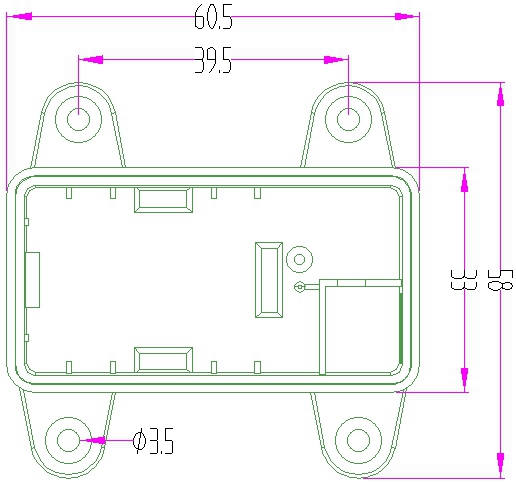

1.Specification
60.5（L）×58（W）×15（H）
3.5（via）
Unit：mm
2. Introduction
STF108DIt is a microwave sensor used for automatic control of toilets. The state of the human body around the toilet is detected by the microwave sensing module, so that the distance and motion state of the person relative to the toilet can be determined. Then, according to the detection result, a corresponding level signal is output, thereby realizing the function of automatically controlling the toilet.
3.Electric Characteristic
Supply Voltage | DC 5 ~ 12V | Response Time | ~0.3 s |
Working Current | ~8 mA | Working Mode | Duty cycle |
Transmit Frequency | 24.125±0.25 GHz | Temperature Range | -20 ~ +60 ℃ |
Detected Distance | 0 ~ (0.5-1.0)m | Startup Time | 8 ~ 10s |
