Elevator Energy Saving Sensor STF128C
Elevator Energy Saving Sensor STF128C
STF128C The sensors are mainly installed on both sides of the elevator entrance and are used to detect moving objects in the entrance area of the elevator.

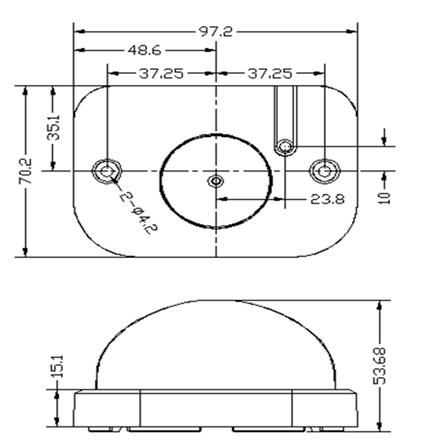

2.Product Dimension
97.2mm(L)×70.2mm(W)×53.68mm（H）
Unit：mm
3.Introdcution
STF128C The sensors are mainly installed on both sides of the elevator entrance and are used to detect moving objects in the entrance area of the elevator. If it is detected that a person enters the detection area of the sensor, it can be judged that a person wants to take the elevator, and then outputs a specific signal to start the elevator.
4. Electric Characteristic
Working Voltage | DC 10～35V | Working Current（Max.） | 10 mA |
Transmit Frequency | 24.125GHz± 125MHz | Continuous output Time | ~2 s |
Transmit Power (Typ.) | 16dBm | Sensing Distance | 0 ~ 3 m |
Sensing Angle | 80°（H） 32°（V） | Output type | Optical Isolator Switch output |
Adjusted Angle | 60°（H） 90°（V） | Working Temperature | -25℃ ~ 65℃ |
